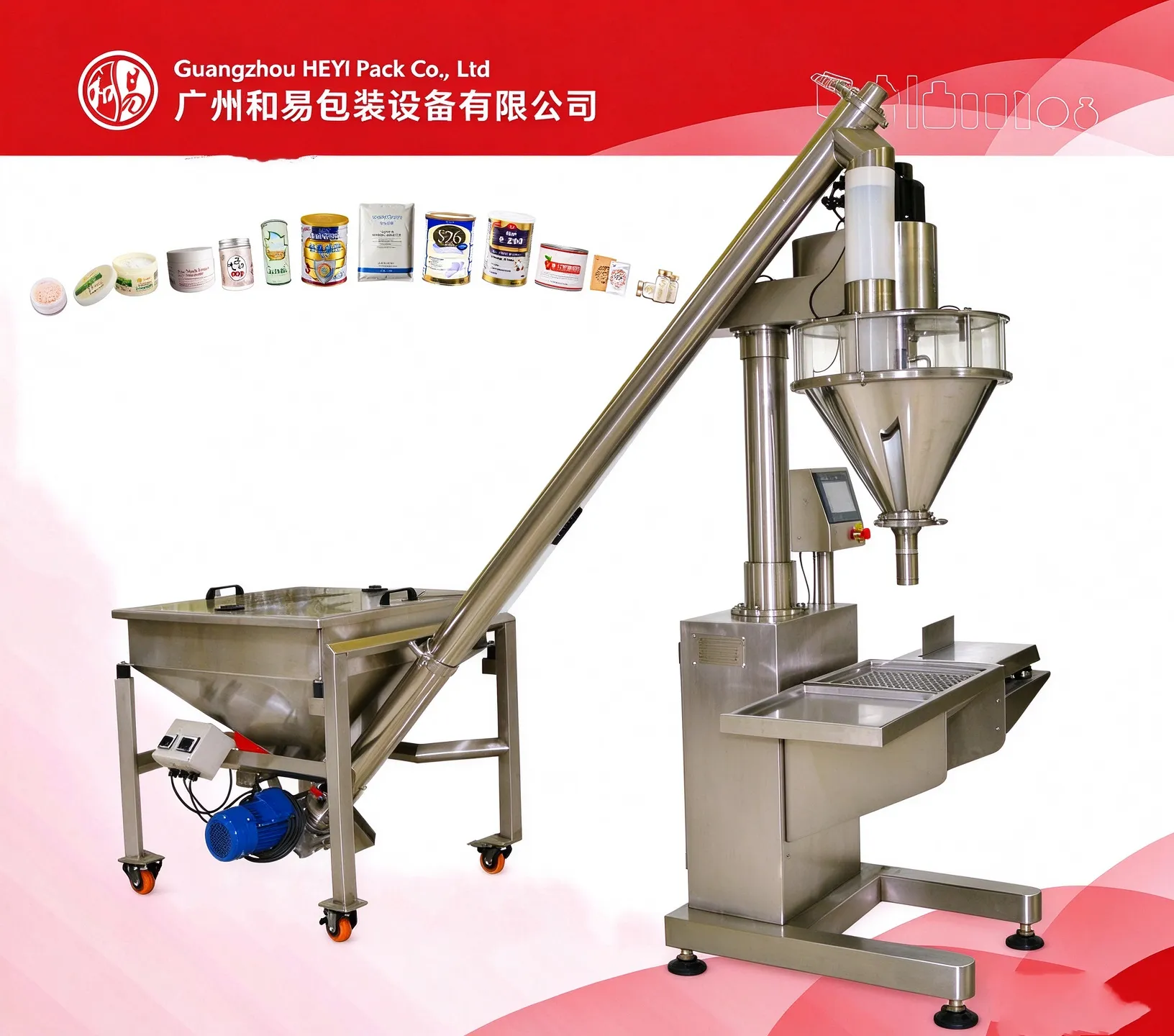

Semi automatic powder filling machine
Semi Automatic Packing Machine
Application It is suitable for semi-automatic filling of powder products with small output and large specifications. The equipment is responsible for quantitative metering, filling, manual bottle or bag, pedal mode, automatic mode control, PLC control, touch screen operation panel, It is easy to operate, stable in operation and long in service life.
It is flexible ,you can change different weight,also can fill bags or bottles,if your worker is fast,then fill 30-60bags/bottle is ok.
Application
It is suitable for semi-automatic filling of powder products with small output and large specifications. The equipment is responsible for quantitative metering, filling, manual bottle or bag, pedal mode, automatic mode control, PLC control, touch screen operation panel, It is easy to operate, stable in operation and long in service life.
Specifications
|
Model |
HY-50F |
HY-200F |
HY-1000F |
|
Filling range |
0.1-100g |
1-200g |
200-1000g |
|
Accuracy |
±(0.05-1)g |
±（0.5-2）g |
±(2-5)g |
|
Filling method |
Auger screw |
Auger screw |
Auger screw |
|
Control |
PLC |
Easy Pack |
PLC |
|
Capacity |
20-30ppm |
15-30ppm |
20-35ppm |
|
Power |
220V50-60HZ/1KW |
220V50-60HZ/0.8KW |
220V50-60HZ/2KW |
|
Dimension |
602*708*1717mm |
750*390*1450mm |
|
|
Weight |
100KG |
100KG |
|
It is flexible ,you can change different weight,also can fill bags or bottles,if your worker is fast,then fill 30-60bags/bottle is ok.
Application
It is suitable for semi-automatic filling of powder products with small output and large specifications. The equipment is responsible for quantitative metering, filling, manual bottle or bag, pedal mode, automatic mode control, PLC control, touch screen operation panel, It is easy to operate, stable in operation and long in service life.
Specifications
|
Model |
HY-50F |
HY-200F |
HY-1000F |
|
Filling range |
0.1-100g |
1-200g |
200-1000g |
|
Accuracy |
±(0.05-1)g |
±（0.5-2）g |
±(2-5)g |
|
Filling method |
Auger screw |
Auger screw |
Auger screw |
|
Control |
PLC |
Easy Pack |
PLC |
|
Capacity |
20-30ppm |
15-30ppm |
20-35ppm |
|
Power |
220V50-60HZ/1KW |
220V50-60HZ/0.8KW |
220V50-60HZ/2KW |
|
Dimension |
602*708*1717mm |
750*390*1450mm |
|
|
Weight |
100KG |
100KG |
|
